SP20824 Pilot Burner Assembly for Rheem Ruud Richmond LP Orifice Water Heater
$101.19
Sale price
$101.19
Regular price
Available to Order
This Pilot Burner Assembly is a genuine-style replacement pilot assembly compatible with Rheem, Ruud, and Richmond water heaters and matches OEM Part# SP20824, pre-configured for LP (propane) gas.
Need help finding the right part? Talk with a parts expert today.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I needed a forklift part and wasn’t sure which one fit. They asked for the model and serial number, got back to me quickly, and made sure I ordered the right one. Really helpful.
Randy W. — Verified customer
Product Overview
The Pilot Burner Assembly is an OEM-grade replacement for Rheem, Ruud, and Richmond water heaters, designed to restore reliable pilot ignition in LP gas models. This pilot burner assembly includes a pre-installed LP orifice for accurate fuel metering and consistent flame performance. Suitable for homeowners and technicians, this SP20824 assembly simplifies pilot repair and ensures safe water heater operation.
Key Features & Performance
- Pre-calibrated LP (propane) orifice for optimal air-fuel mixture.
- Direct replacement for Rheem, Ruud, Richmond SP20824 pilot assemblies.
- Corrosion-resistant materials ensure long life in moist burner compartments.

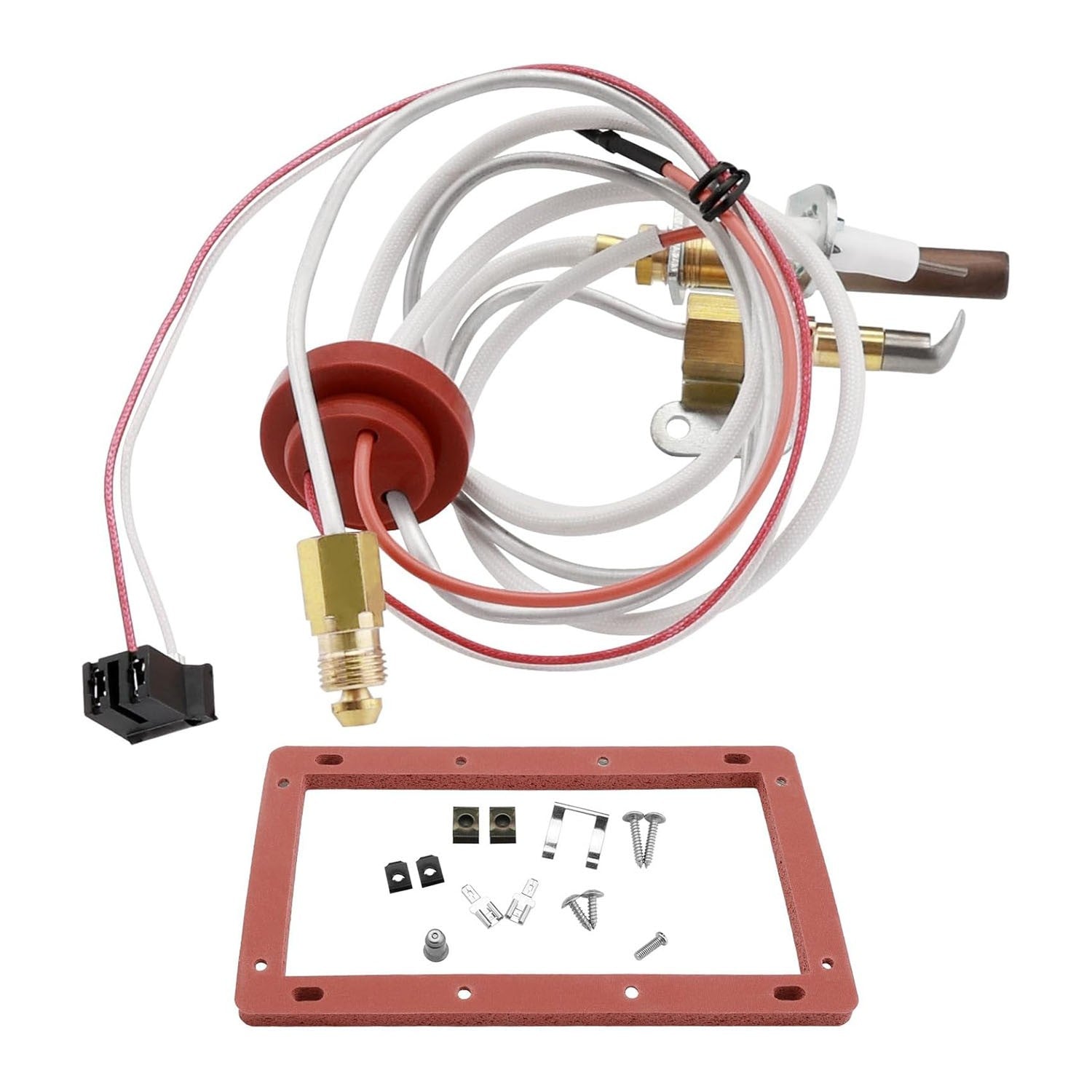

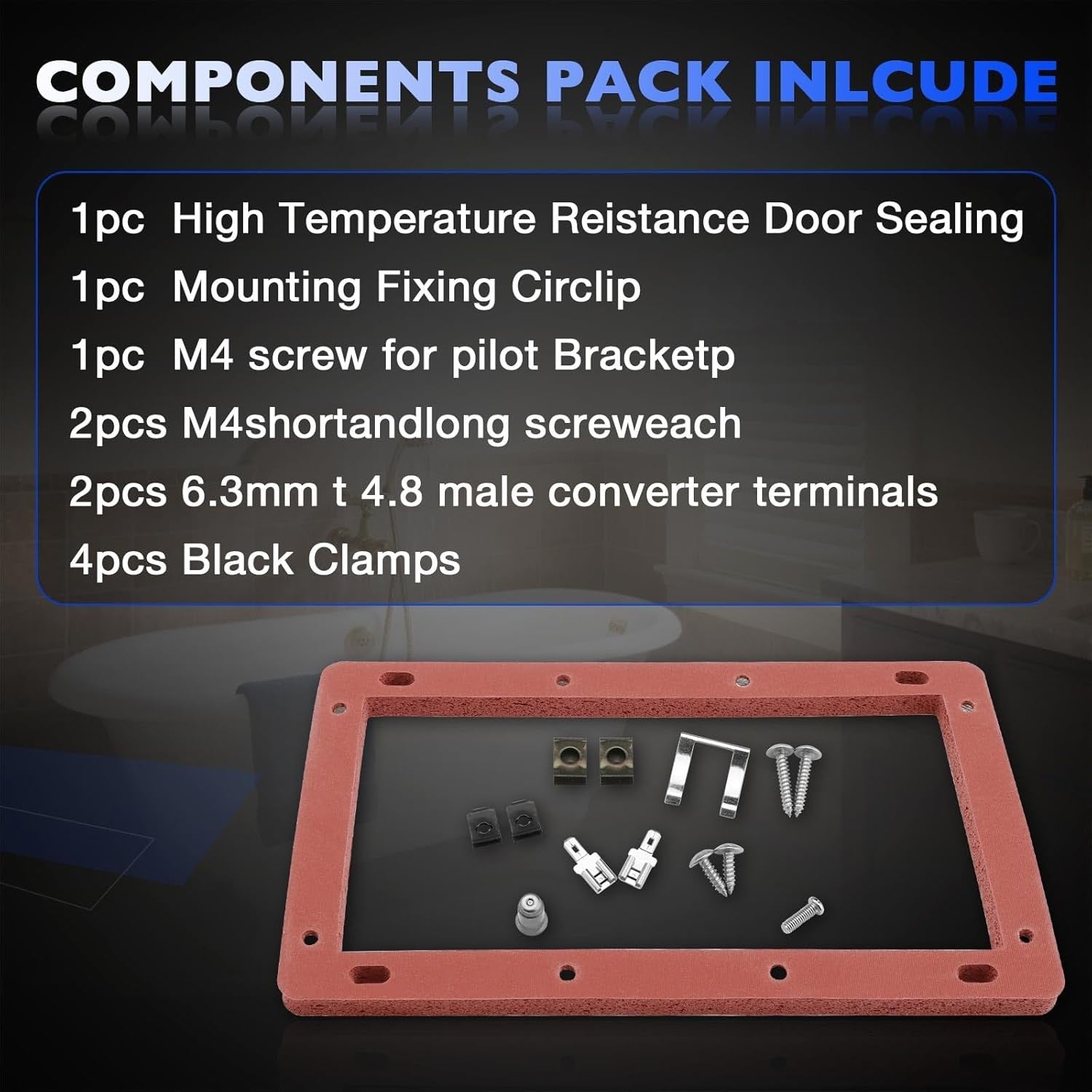

- Complete kit with burner, orifice, and mounting hardware for hassle-free installation.
- Tested to produce a strong pilot flame that reliably ignites the main burner.
- Exact fitment eliminates need for drilling or modification.

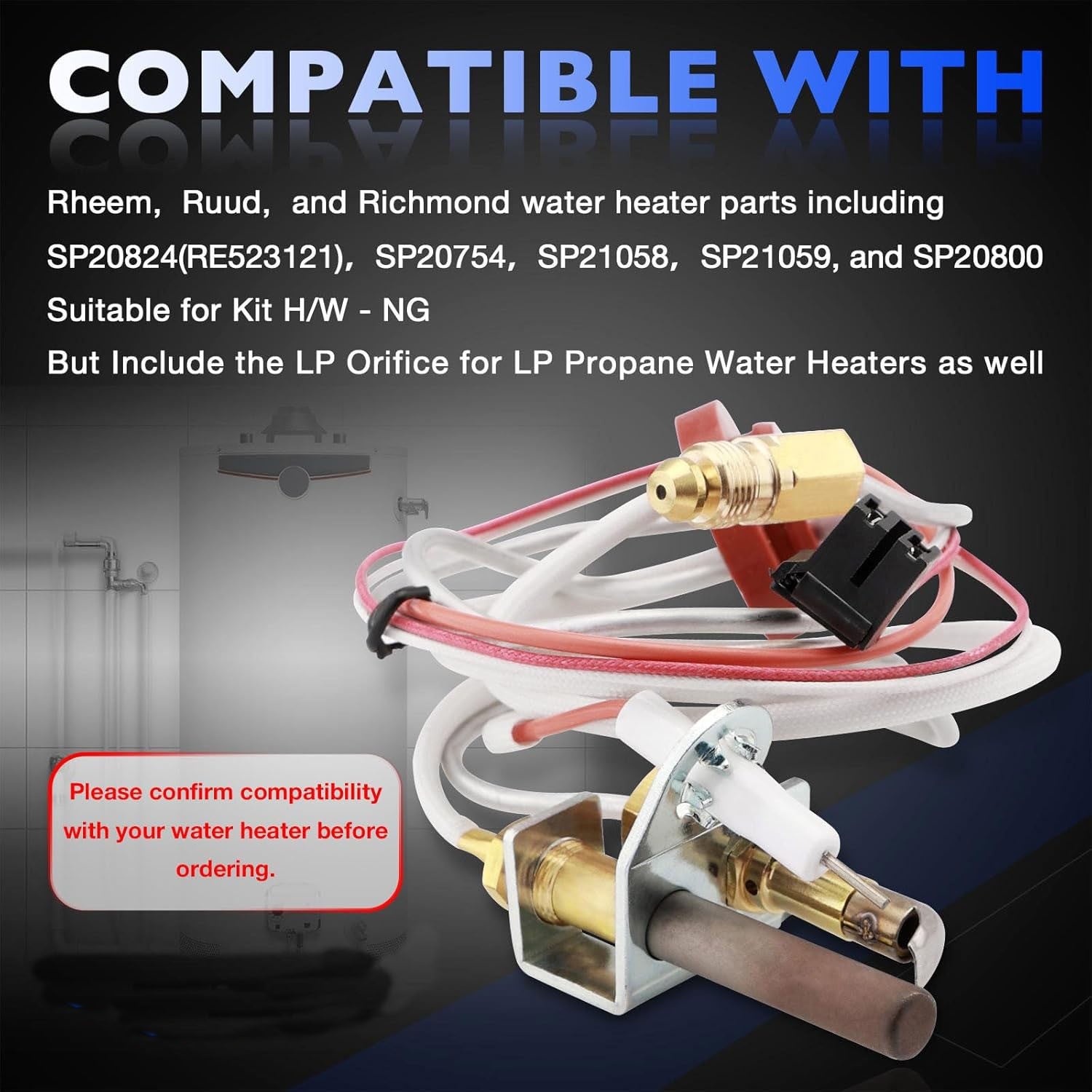

Fitment & Compatibility
- Rheem residential gas water heaters requiring SP20824 pilot assembly
- Ruud gas water heaters using SP20824 pilot
- Richmond water heaters with LP gas conversion and SP20824 pilot
Common Uses
- Restoring pilot ignition in Rheem, Ruud, Richmond LP water heaters
- Repairing intermittent pilot outages due to dirty or damaged burner
- Replacing old pilot assemblies during routine water heater maintenance
- Ensuring safe gas combustion by installing an OE-spec pilot burner

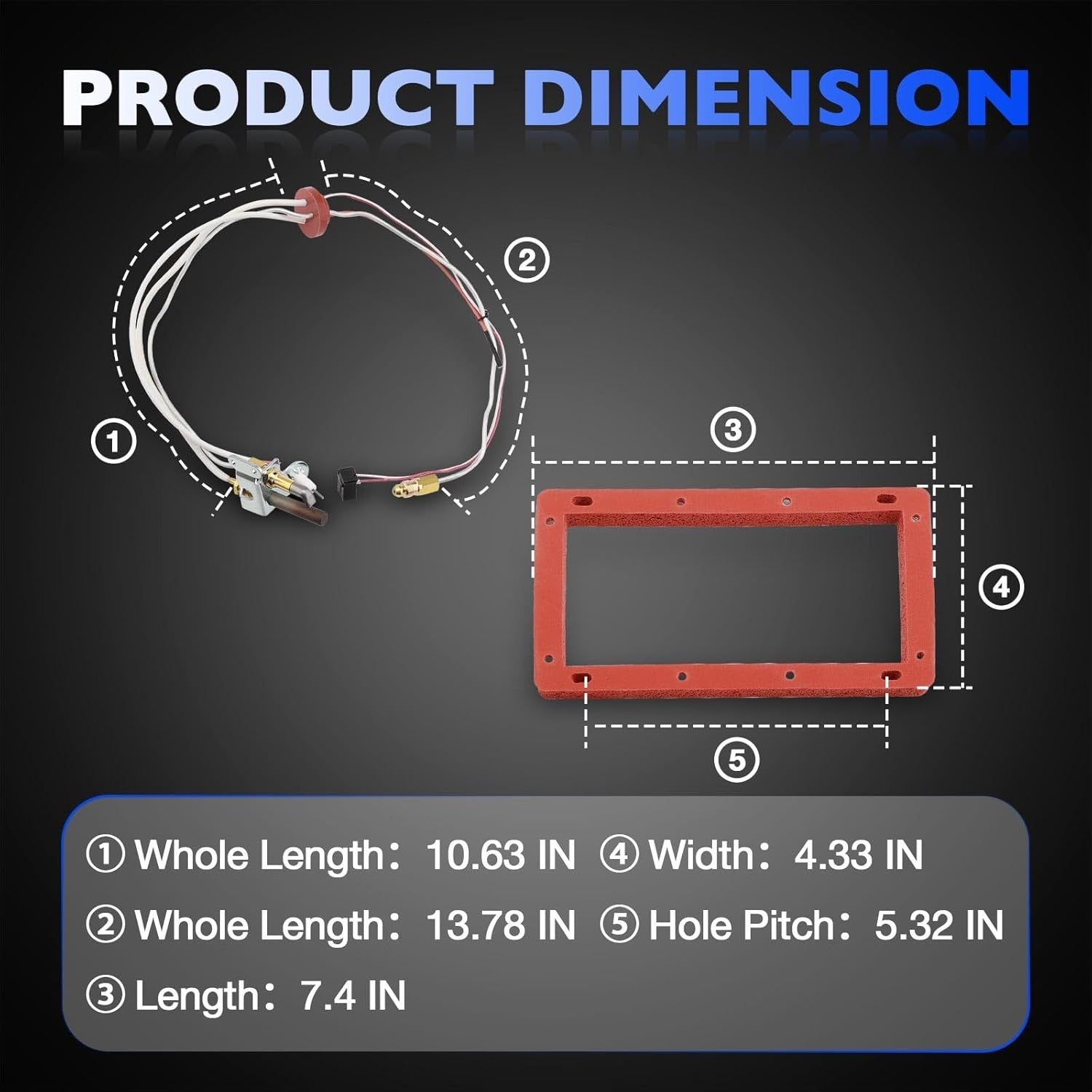

Technical Specifications
- Part Number(s): SP20824
- Gas Type: LP (Propane)
- Burner Material: Stainless steel
- Compatible Brands: Rheem, Ruud, Richmond
Frequently Asked Questions
Q: Does this pilot assembly come with the thermocouple? A: This listing includes the pilot burner, orifice, and mounting hardware only; the thermocouple or thermopile is not included unless specifically noted. Please check the product images for all included components.
Q: Will this SP20824 pilot burner work with natural gas? A: No, this assembly is equipped with an LP orifice designed for propane. Using it with natural gas would require replacing the orifice with a natural gas version to ensure safe and proper operation.
Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
