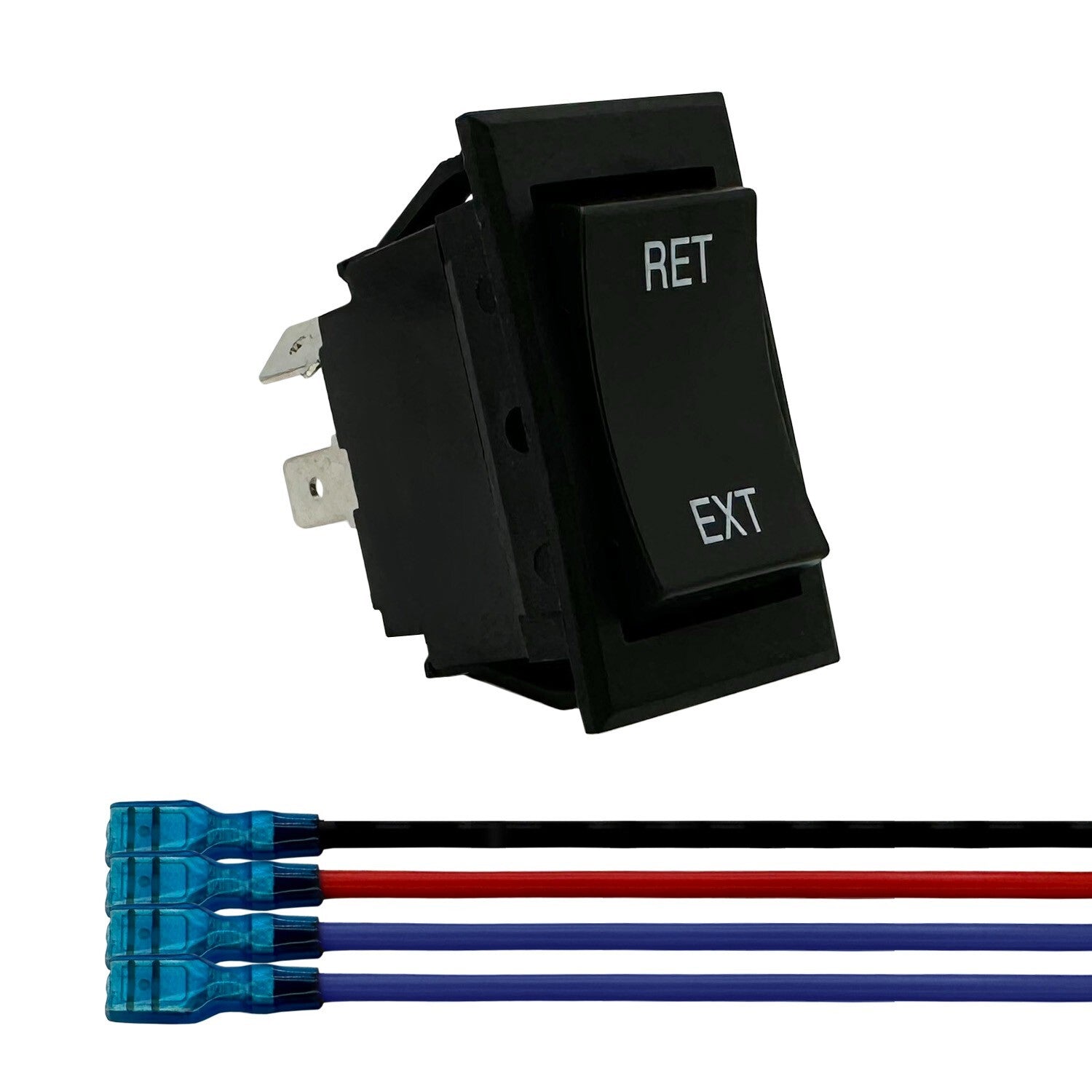

Momentary Reverse Polarity Rocker Switch 20A 12V DC On Off DPDT 4 Pin
Pickup currently not available
Need help confirming fitment?
Talk with a parts expert today.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I needed a forklift part and wasn’t sure which one fit. They asked for the model and serial number, got back to me quickly, and made sure I ordered the right one. Really helpful.
Randy W. — Verified customer
Equipment Fitment
Review the equipment and model information below. Fitment can vary by serial number, production date, or machine configuration, so confirm your model and reference numbers before ordering.
Product Overview
Product Overview
Key Features & Performance
- 20 amp continuous rating at 12V DC for reliable power handling
- Momentary action returns switch to off position when released

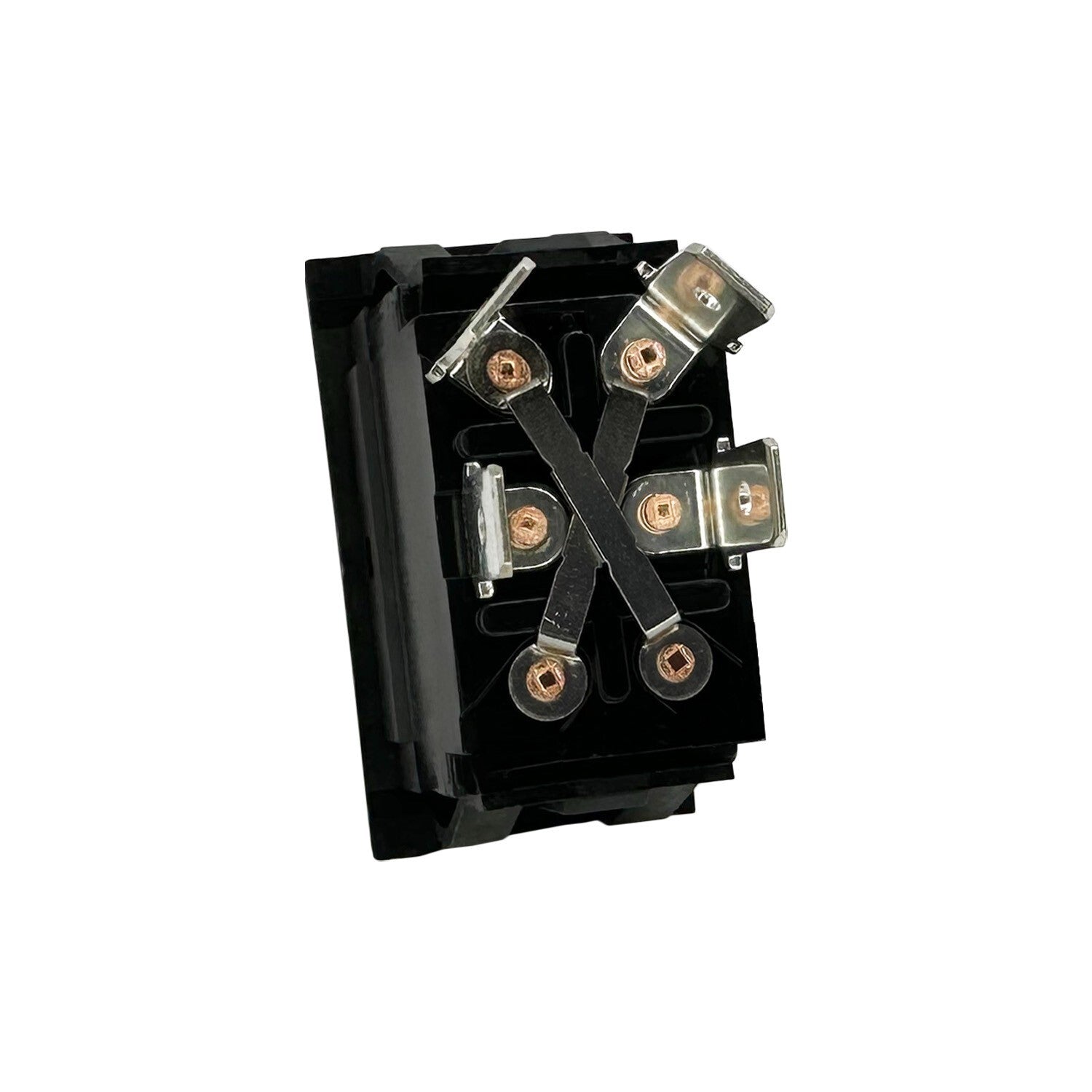

- Reverse polarity wiring toggles motor direction for winch or actuator control
- DPDT (Double Pole Double Throw) configuration supports reversible motor circuits
- 4 pin design for simple wiring with common SPST/DPDT rocker switch connectors
- Rugged construction suitable for off-road and marine environments
Common Uses
- Control electric winch in forward/reverse operation
- Actuate linear actuators for seating or lifting applications
- Operate power windows or convertible tops with momentary directional control
- Manage polarity reversal for solenoids or DC motors in 12V systems

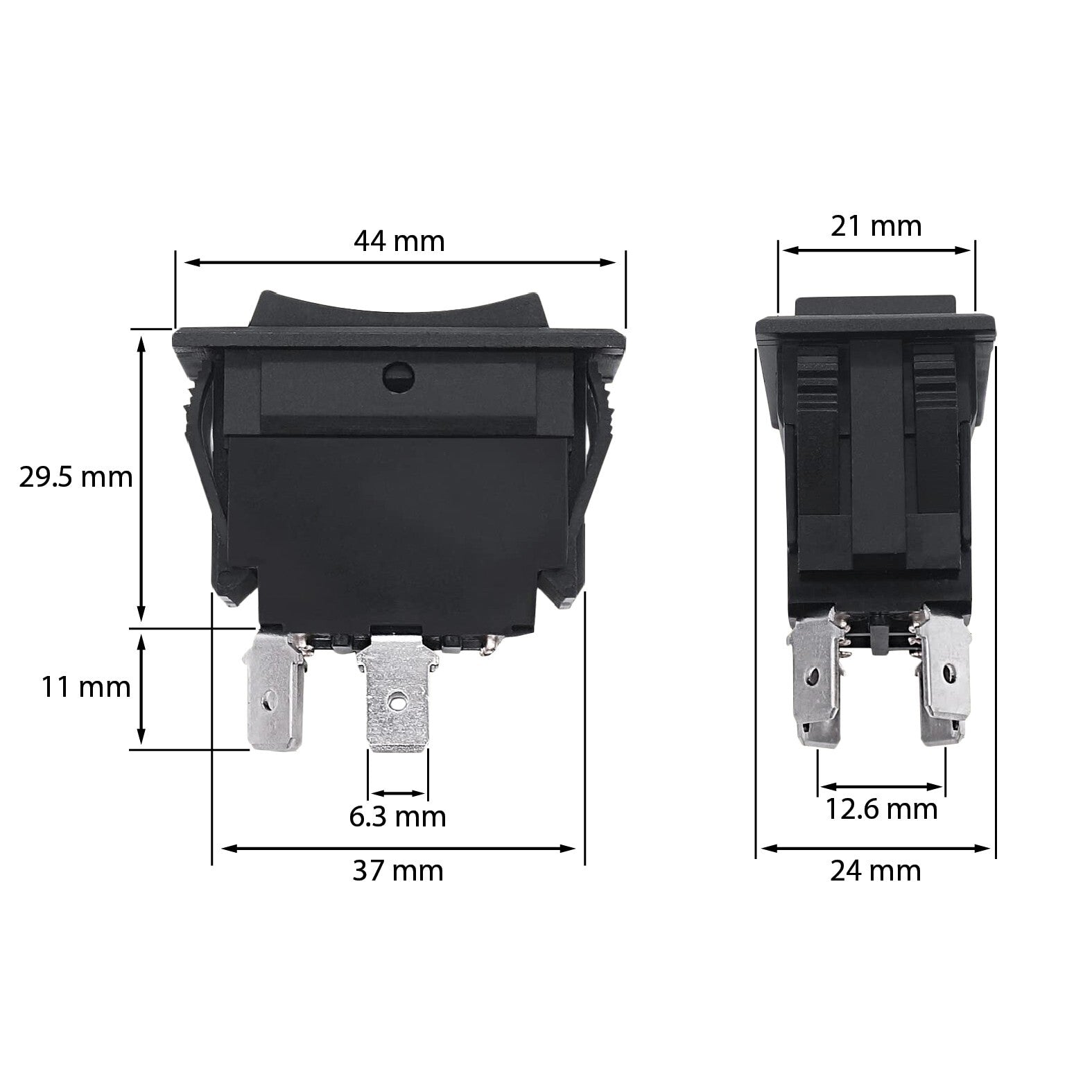

Technical Specifications
- Amperage Rating: 20A
- Voltage Rating: 12V DC
- Switch Type: DPDT Momentary On-Off-On (with off in center)
- Polarity: Reverse polarity (momentary direction switching)
- Terminals: 4 pins (blade type)
Frequently Asked Questions
Q: Can this switch handle continuous use? A: Yes, it is rated for 20A continuous at 12V DC, but momentary operation is recommended for motor direction changes to extend switch life.
Q: How do I wire a reverse polarity rocker switch? A: Connect power and ground to common pins, then motor leads to the normally open pins; toggling reverses polarity across the motor.
Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
