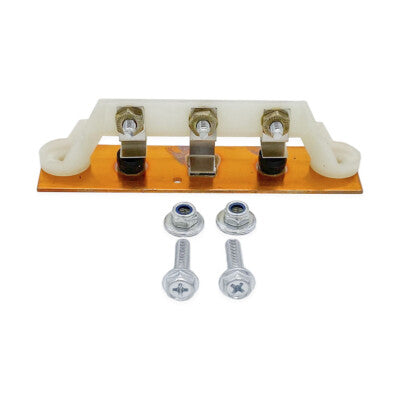

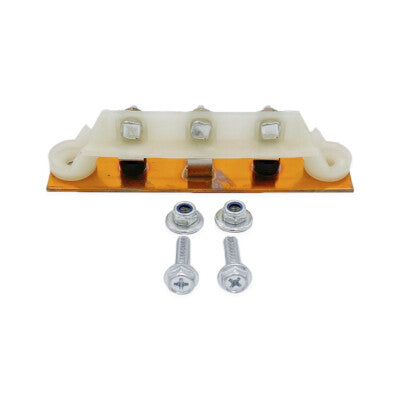

Heat Sink Assembly with Diodes for Club Car 1015914 36V 48V 1012109
$55.59
Sale price
$55.59
Regular price
Available to Order
This Heat Sink Assembly with Diodes is a replacement heat sink assembly compatible with Club Car golf carts (36V/48V) and matches OEM Part# 1015914, 1012109.
Need help finding the right part? Talk with a parts expert today.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I needed a forklift part and wasn’t sure which one fit. They asked for the model and serial number, got back to me quickly, and made sure I ordered the right one. Really helpful.
Randy W. — Verified customer
Product Overview
This heat sink assembly with diodes dissipates heat generated by the electrical system of Club Car golf carts. It is designed for 36V and 48V Club Car models requiring a reliable replacement for worn or damaged heat sink components. The assembly includes pre-installed diodes for easy installation.
Key Features & Performance
- Includes heat sink and diodes in one assembly
- Matches OEM part numbers 1015914 and 1012109
- Direct fit for Club Car golf carts with 36V or 48V systems
- Helps prevent overheating of electrical components
- Robust construction for long service life in golf cart environments
Fitment & Compatibility
- Club Car golf carts (36V and 48V models)
- Replaces OEM part numbers 1015914, 1012109
Common Uses
- Replacement for failed or damaged heat sink assemblies on Club Car carts
- Repair of electrical system overheating issues
- Maintenance for Club Car DS, Precedent, and Carryall models
Technical Specifications
- Part Number(s): 1015914, 1012109
- Type: Heat Sink Assembly with Diodes
- Voltage: 36V / 48V
- Application: Club Car Golf Carts
Frequently Asked Questions
Q: Will this heat sink assembly fit my 36V Club Car? A: Yes, it is compatible with both 36V and 48V Club Car models that use OEM part numbers 1015914 or 1012109.
Q: Does this assembly come with the diodes already installed? A: Yes, the diodes are pre-installed on the heat sink, making installation straightforward.
Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
