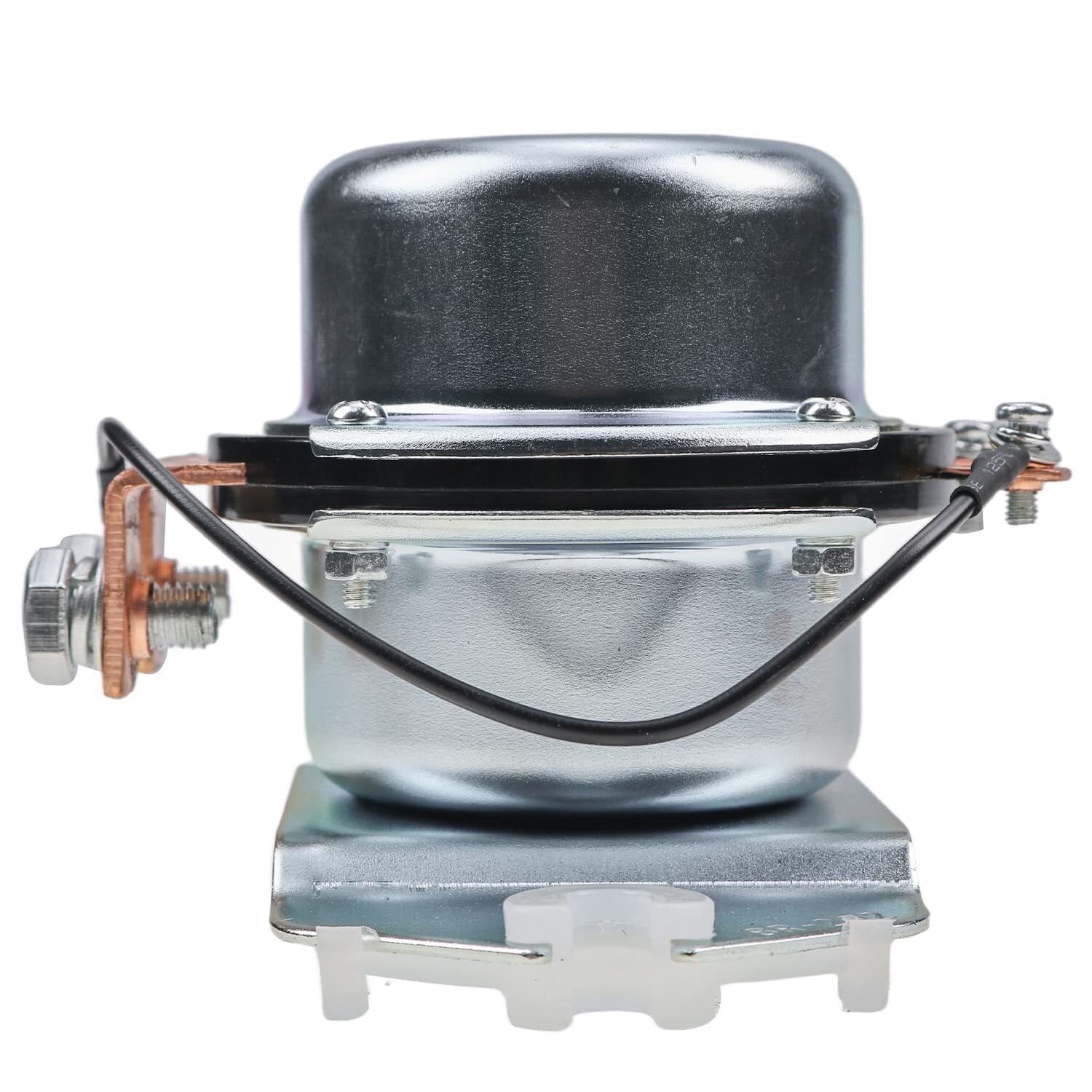

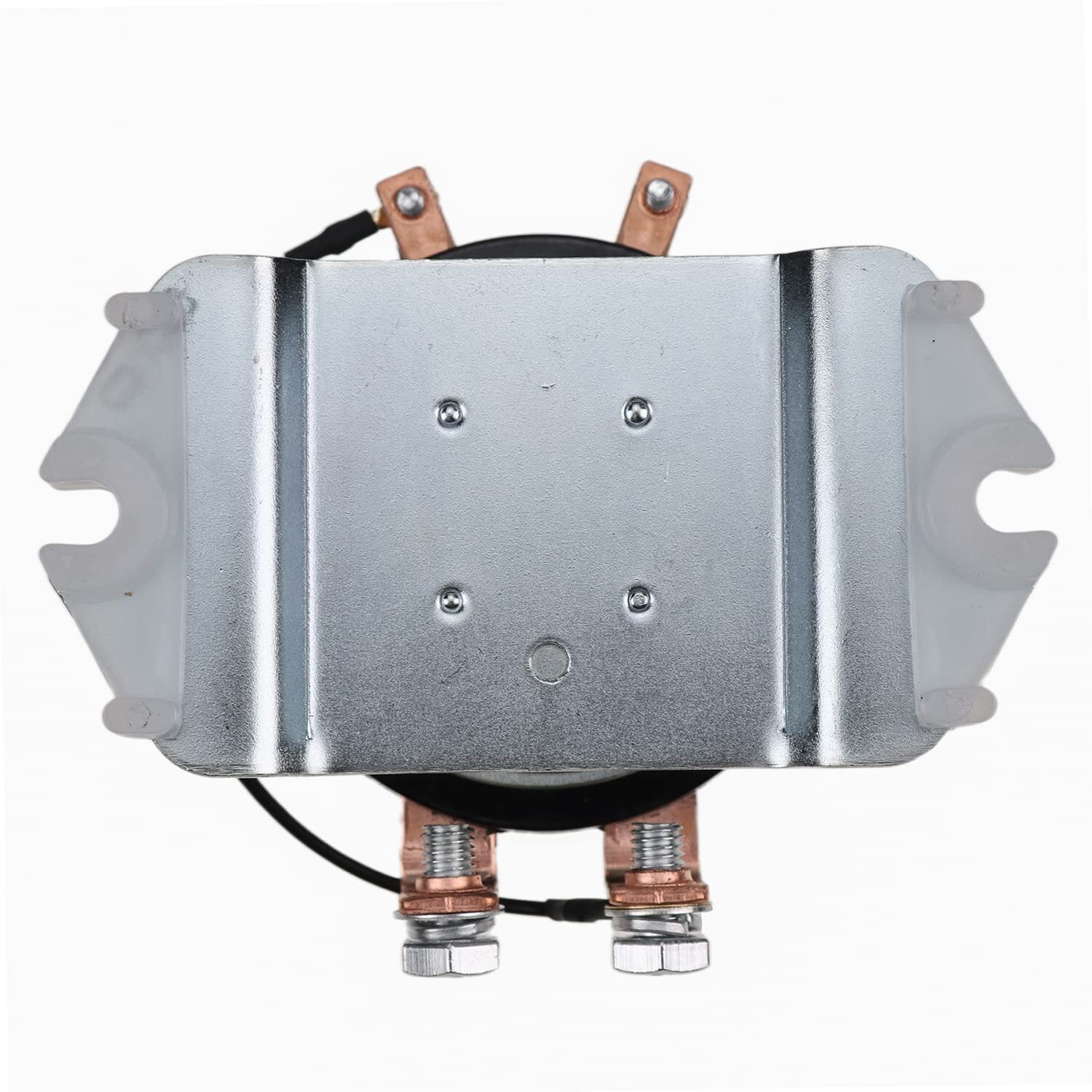

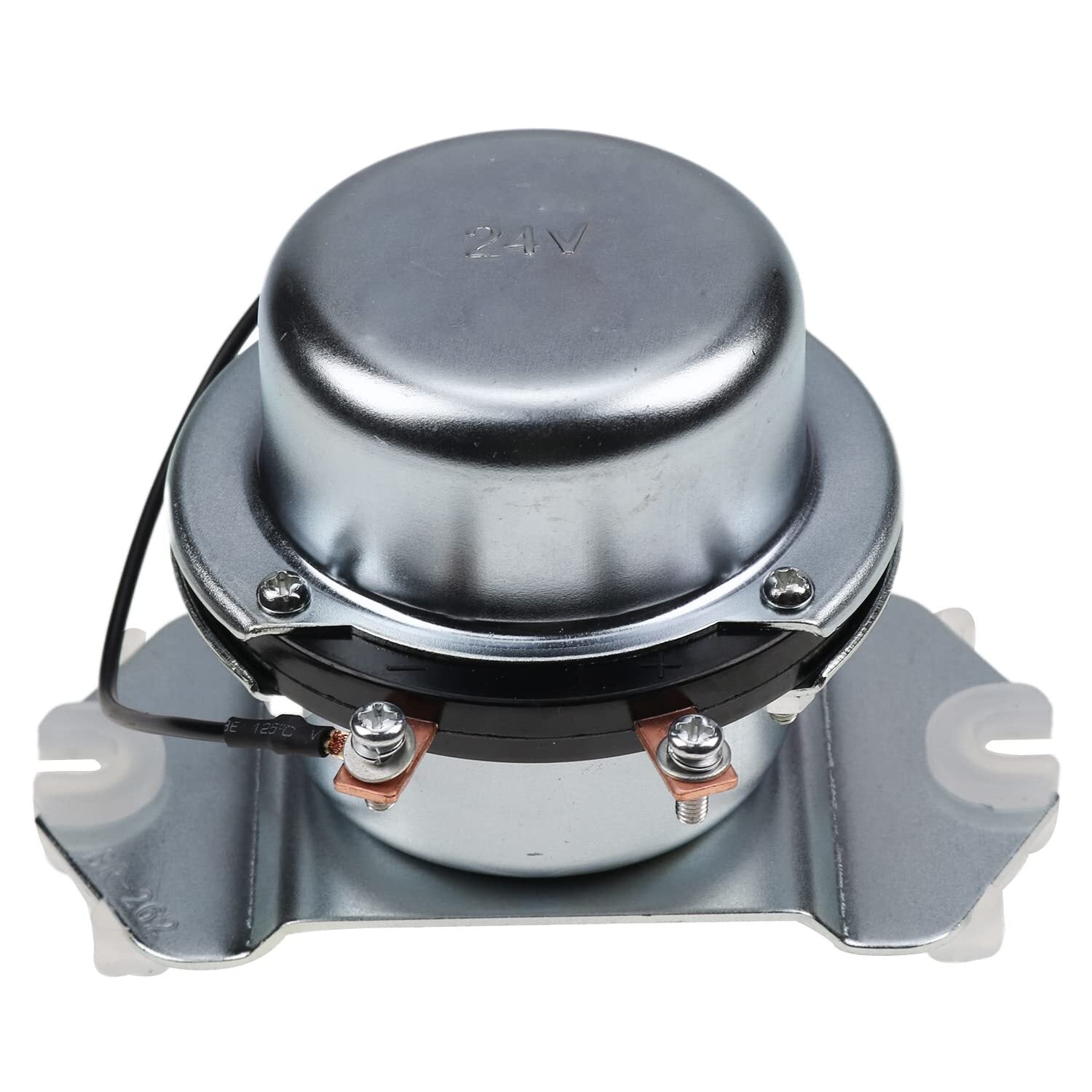

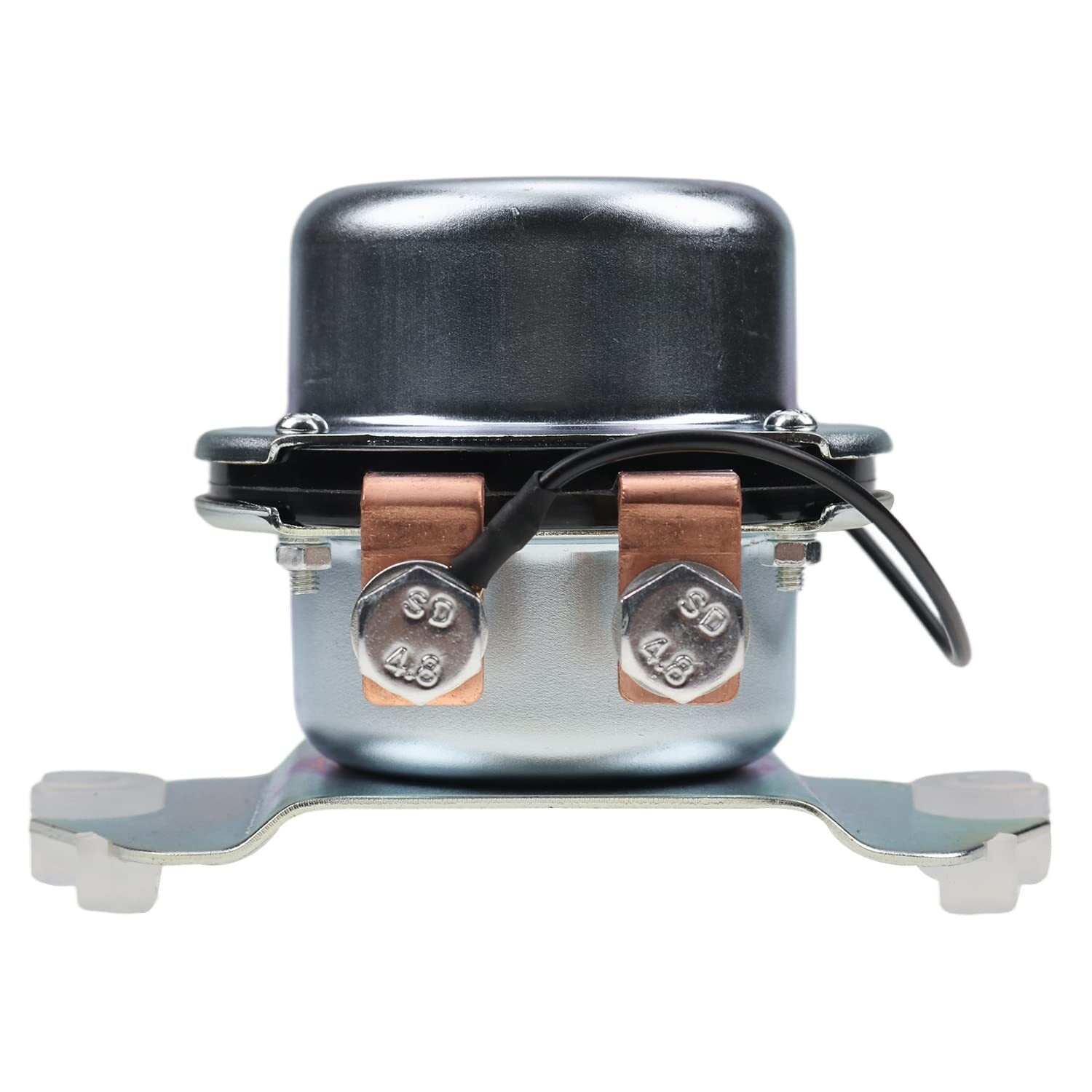

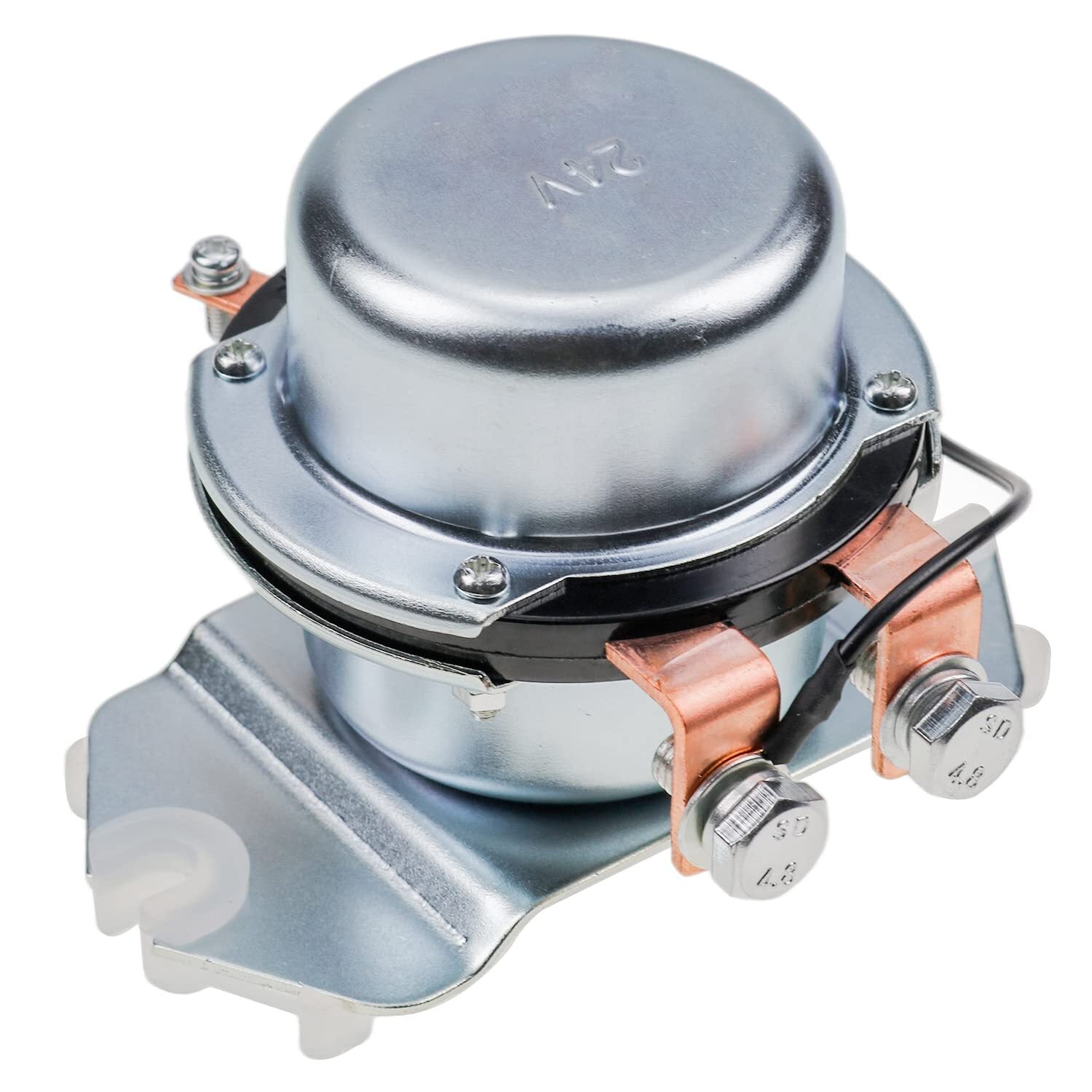

24V Battery Relay 71630205 for JCB JS115 JS130 JS145 JS175

24V Battery Relay 71630205 for JCB JS115 JS130 JS145 JS175

$72.69
Sale price  $72.69 Regular price
SKU: IR2Z01121 Brand: Northline Parts

In stock, Order by 5 PM CT for Free Same-Day Shipping

Quantity
Secure Checkout • Encrypted Payments
Free Shipping Contiguous U.S.
1-Year Warranty Parts you can rely on
30-Day Returns Hassle-free returns
Industrial Retailer parts support representative

Need help confirming fitment?

Talk with a parts expert today.

Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT

Live Chat: Available 24/7

I needed a forklift part and wasn’t sure which one fit. They asked for the model and serial number, got back to me quickly, and made sure I ordered the right one. Really helpful.

Randy W. — Verified customer

Equipment Fitment

Review the equipment and model information below. Fitment can vary by serial number, production date, or machine configuration, so confirm your model and reference numbers before ordering.

Equipment / model
  • JCB JS115
  • JCB JS130
  • JCB JS145
  • JCB JS175
Secure Your Part  - Order Now

In stock Free shipping 1-year warranty

Product Overview

This 24V battery relay is a heavy-duty electrical switching device designed to manage power distribution in JCB excavators. It ensures reliable engagement and disconnection of the battery circuit, making it essential for operators and technicians maintaining JCB JS Series machinery.

Key Features & Performance

  • Rated for 24V electrical systems commonly used in heavy construction equipment
  • Direct replacement for OEM part numbers 716/30205 and 71630205
  • Constructed with durable materials to withstand vibration and harsh operating conditions
  • Precision-engineered contacts for consistent electrical conductivity and long service life
  • Plug-and-play design simplifies installation and reduces downtime

Common Uses

  • Replacing a failed or intermittent battery relay on JCB excavators
  • Restoring proper starting and charging system function
  • Performing preventative maintenance during electrical system overhauls

Technical Specifications

  • Voltage: 24V
  • Part Number(s): 716/30205, 71630205
  • Compatible Make: JCB

Frequently Asked Questions

Q: Is this relay the same as the original on my JCB JS130? A: Yes, this 24V battery relay is a direct replacement for the OEM unit with part number 716/30205, designed to fit JS115, JS130, JS145, and JS175 models.

Q: How do I know if my battery relay needs replacement? A: Common symptoms include the machine not starting, intermittent electrical power loss, or a clicking sound without engine engagement.

Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
